1. Technical Data

Voltage: 48V
Capacity: 11.6Ah
Energy: 558Wh
Weight: Appr. 2.9kg
Size: 430x43x103mm
Cell: DMEGC-29E
Cycle Life (Time): 1000+
Standard Current: 10A
Max Current: 20A
Protect Current: 50A
End Voltage: 36.4V
Compatible with bikes: eLectric XP1.0 2.0; Ruicanjie r5s/ride 66 R5; BEZIOR M26; Bezior X500 Pro; BEZIOR X1500;
samebike XWLX09; samebike LO26; samebike 20LVXD30;
Fiido M21; FIIDO M1 Pro; Shengmilo MX-21; Shengmilo MX-80; Shengmilo MX-01/MX01;
TESGO Hummer-S;
SMLRO S11F;
Wooken Electric Bike TotGuard Electric; (‎T-268)
GOTRAX R1;
GORTAT R8;
Janobike H26;
Paselec PX6;
LAFLY X-3/X-5;
ALFINA FX-01 FX-21;
JINGHMA R7/R5/R3/R6;
ENGWE engine pro;
Engwe ep-2 pro;
Engwe ep-2 ;
BEZIOR XF200

2. Packing List
1x Battery
2x Key
1x User Manual

3. Additional Information
* DCH-006 48V L430mm compatible with eLectric XP, Samebike LO26, 20LVXD30, XWLX09, Fiido M1 pro (not M1) and more.
* The warranty of battery is 18 months.
* The shipping takes 2-4 working days in Germany. In other countries, the shipping takes 4-8 working days.
* The battery is compatible with 48V 250W - 350W motor kits.
* There is no battery case and discharging cable in parcel.

4. Copyright Statement
All the contents including words, pictures, and videos are originally made by YOSE POWER.
It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.

5. Important Notice for Recycling of Used Batteries
* As a professional battery distributor, we strictly abide by local laws and regulations to ensure battery quality, transportation and storage safety, environmental protection.
* According to the battery regulation, batteries must not be disposed of with household ordinary waste.
* Consumers are obliged to dispose of the used batteries to the professional recycling agency for proper disposal. They must not be arbitrarily thrown into the trash. Please protect the environment!

ENGWE battery

48V 11.6Ah(558Wh) Folding E-Bike Battery InFrame Li-ion Accu DCH006 without Charger for FIIDO M1 Pro / BEZIOR XF200 / Samebike Battery

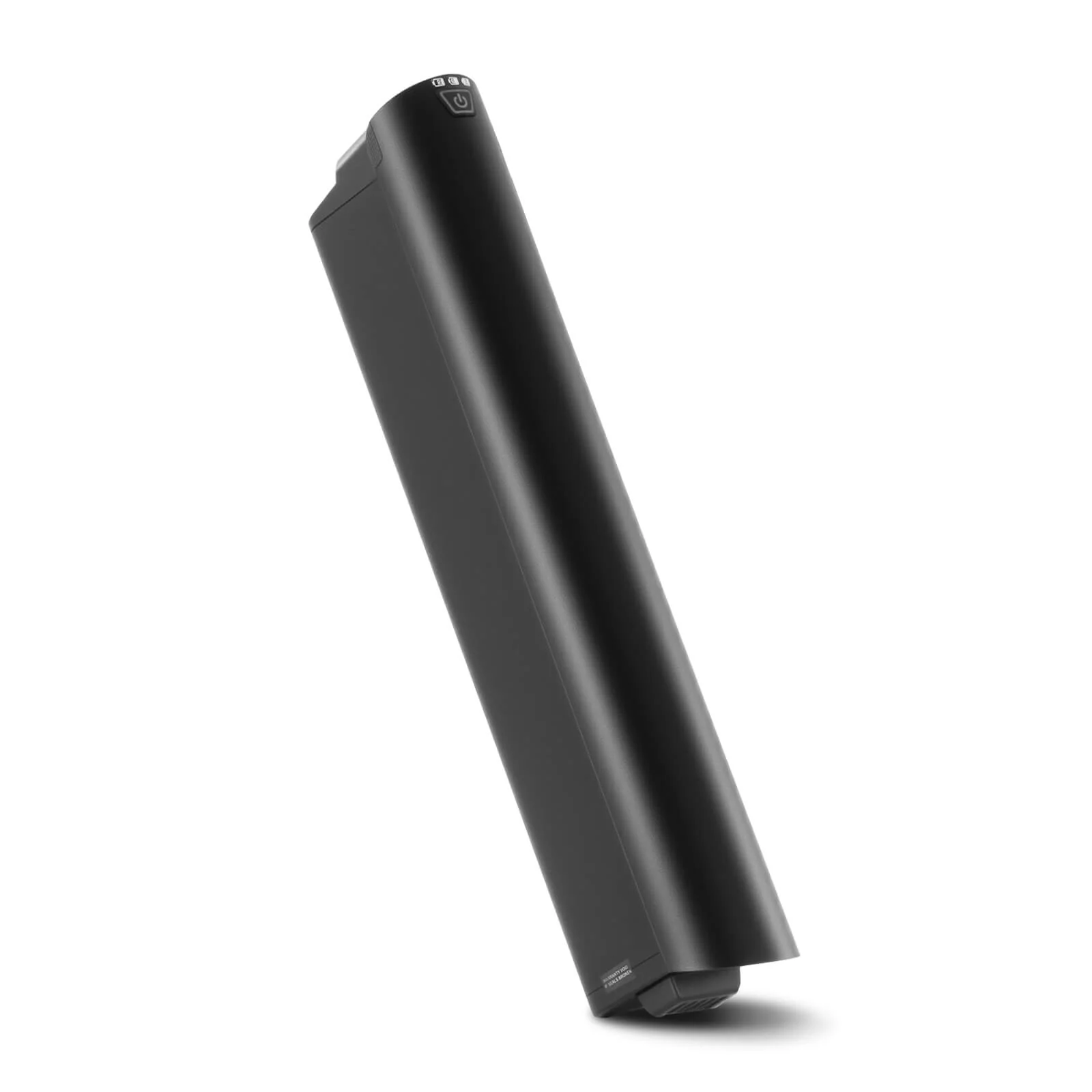

36V 16Ah(576Wh) Li-ion E-Bike Accu Intube Battery for HillMiles Bike Battery, Jasion EB5 Roamer/Touroll J1 ST Trekk/Samebike RS-A01 Pro-T Urban

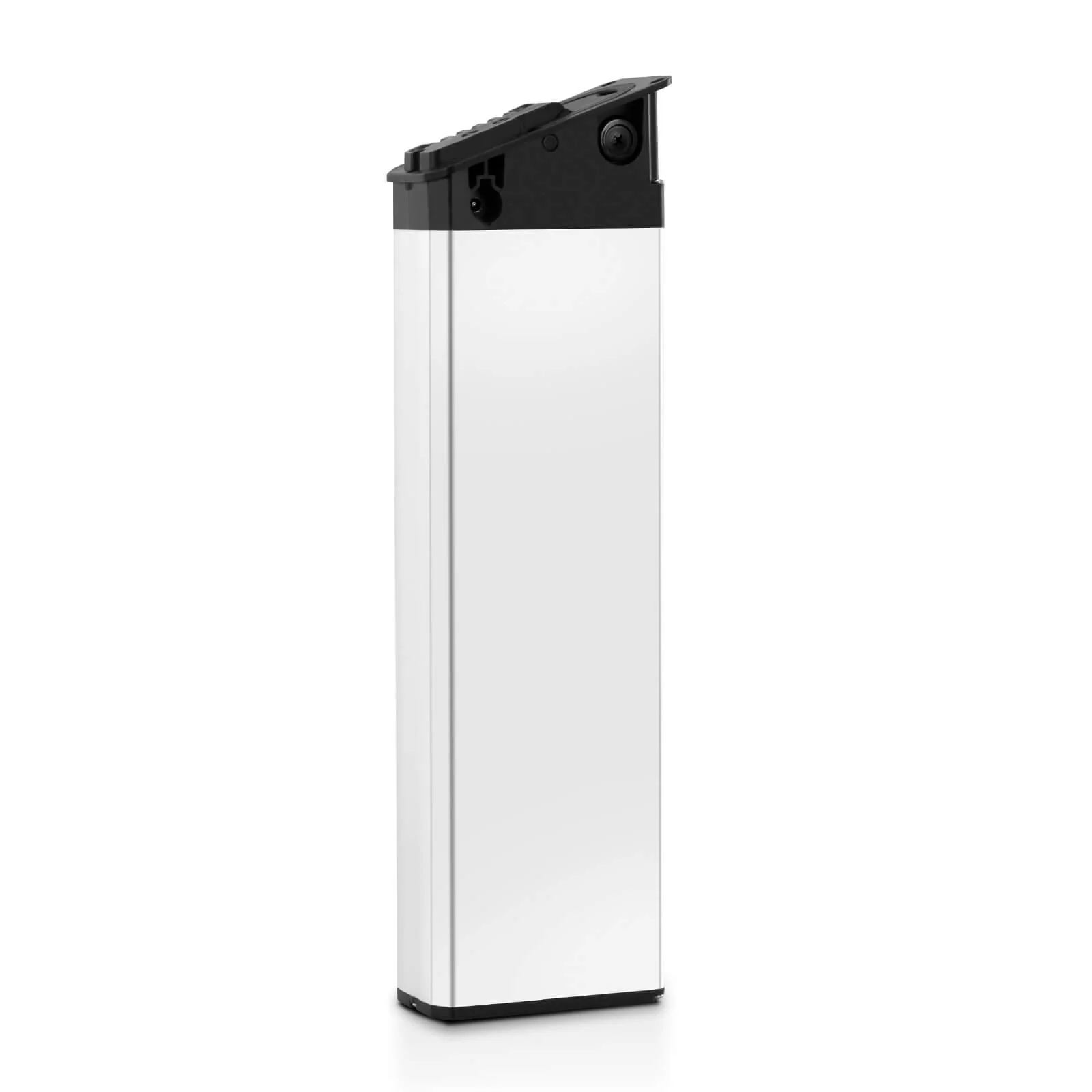

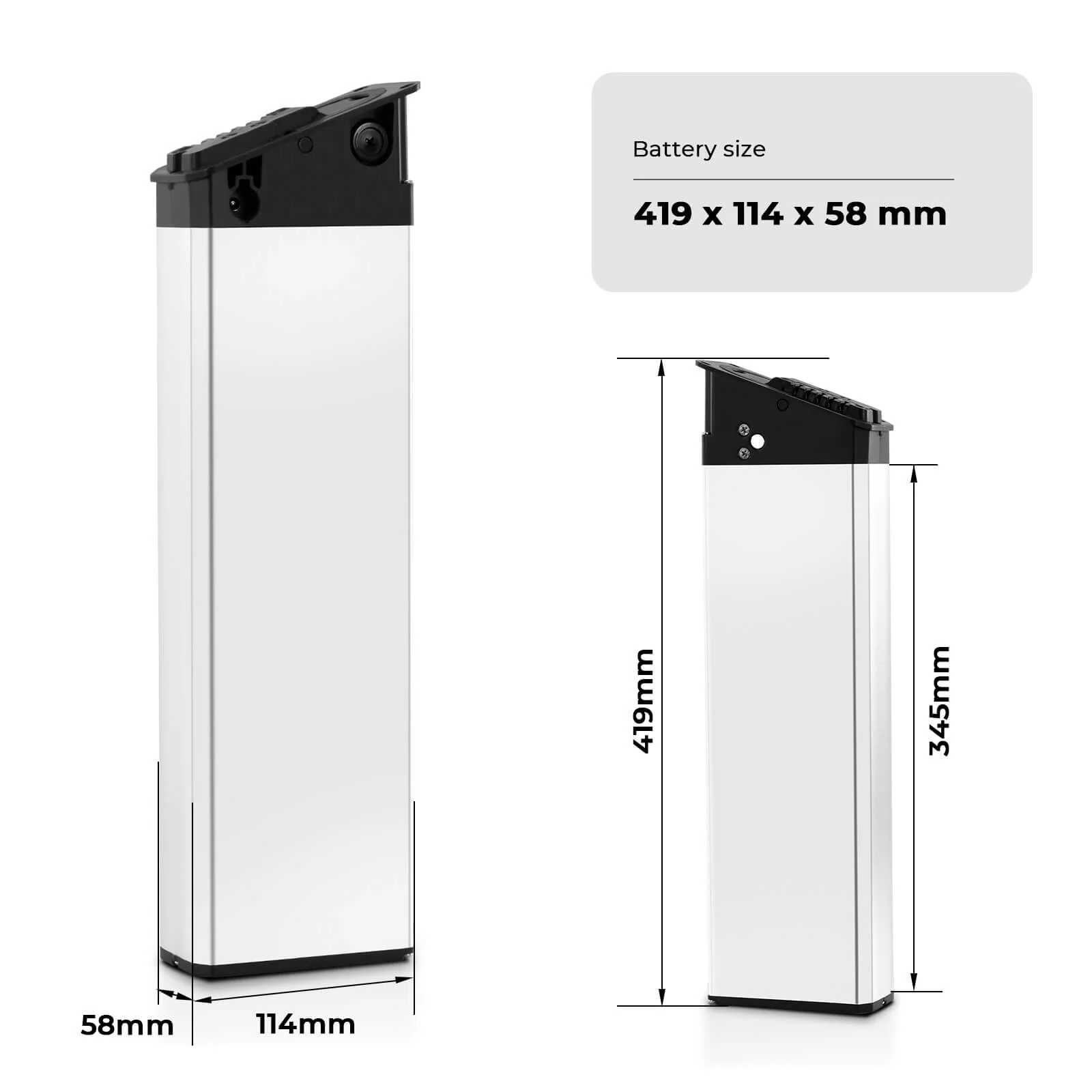

48V 14.5Ah(697Wh) E-Bike Li-ion Battery Inframe Accu without Charger for Mate X ,Engwe pro 2/EP-2 pro/Engine X
